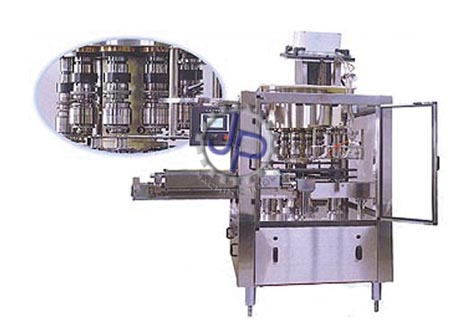

Screw capping machine with torque tester

Model No Production per hour No of capping heads
JPSCT-3 3600 3
JPSCT-6 9000 6
JPSCT-9 14000 9
JPSCT-12 18000 12

* The output depends on bottle and cap geometry.

* Specification subject to change without prior notice.

Application: To apply Screw measure cap on Plastic/Glass capped bottles

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » All controls from panel
  • » Left to right and right to left options available
  • » PLC HMI-Touch screen

Features

  • » Very quick changeover of the changeparts.
  • » Pick and place mechanism
  • » Special chucks to reduce damage/marks on caps
  • » Very high accuracy for Screwcap placing
  • » Separate servo motors for each head for torque application for cap tightening
  • » No bottle no cap
  • » Completely Fail safe design
  • » Feedback of Torque applied on each cap given to HMI/PLC, so can rejection signal can be generated
  • » HMI control for Torque adjustment

Accessories

  • » Cap loader
  • » Pre/post inspection device
  • » Tagger detection mechanism
  • » Cap Rejection device
  • » Bottle rejection device

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 5HP
  • » Air:- 2 CFM @ 4 to 6 kg/cm2
  • » Orienter/ vibrator for cap feeding
  • » Cap cleaning online
  • » Torque measurement and rejections mechanism
  • » To apply Screw measure cap on Plastic/Glass capped bottles with the specified torque
  • » Cap diameter:- 20 mm to 50 mm
  • » Cap Height :- 12 mm to 30mm
  • » Bottle diameter:- 30mm to 80mm
  • » Bottle Height:- 30mm to 150mm
