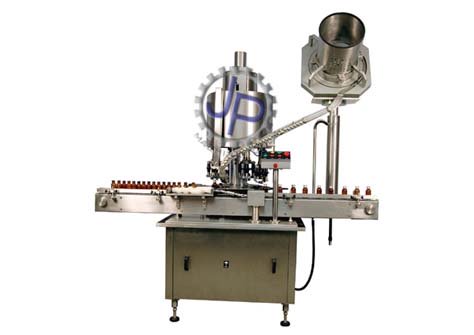

Ropp capping machine

Model No Production per hour No of capping heads
JPRO-3 4000 3
JPRO-6 8000 6
JPRO-9 12000 9
JPRO-12 16000 12

*The output depends on bottle and cap geometry.

* Specification subject to change without prior notice.

Application: To form and apply Aluminium cap on Plastic/Glass bottles

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » All controls from panel
  • » Left to right and right to left options available

Features

  • » Very quick changeover of the changeparts.
  • » Very high accuracy for ROPP-aluminium cap placing
  • » Planet gear mechanism for capping head rotation.
  • » Two stage placing mechanism operation for perfect orientation of caps
  • » Bottle will pick the cap from the chute
  • » Capping head will seal and thread the cap on the bottle
  • » Completely Fail safe design

Accessories

  • » Cap cleaner
  • » Cap inspection device
  • » Cap loader

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 2HP
  • » PLC HMI-Touch screen
  • » Orienter/ vibrator for cap conveying
  • » Production Counter
  • » Zigma head Instead of normal head
  • » To form and apply Aluminium cap on Plastic/Glass bottles
  • » Cap diameter:- 20 mm to 35mm
  • » Cap Height :- 10 mm to 50mm
  • » Bottle diameter:- 30mm to 80mm
  • » Bottle Height:- 50mm to 150mm
