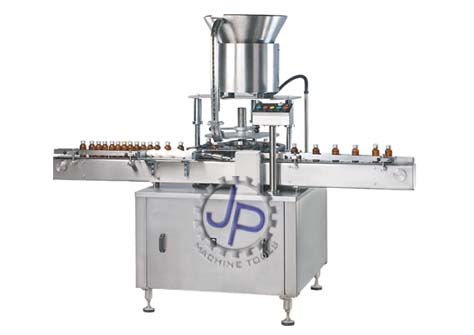

Dose Measure fixing machine

Model No Production per hour
JPDMR-60 3600
JPDMR-120 7200
JPDMR-240 14400

*The output depends on bottle and cup geometry.

* Specification subject to change without prior notice

Application: To apply Dose measure cup on Plastic/Glass capped bottles

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure, with height adjustment
  • » Sleek sturdy and compact design
  • » All control from panel itself
  • » Left to right and right to left options available

Features

  • » Very quick changeover of the changeparts.
  • » Very high accuracy for dose measure cap placing
  • » Two stage pressing mechanism operation for perfect orinetation of cups
  • » Bottle will pick the cap from the chute
  • » Pressing plate and roller will fix it on the bottle
  • » Completely Fail safe design

Accessories

  • » Dose measure loader
  • » Production Counter
  • » Pre/post Inspection unit

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 2 HP
  • » PLC HMI-Touch screen
  • » Orienter / vibrator for dose measure cap conveying
  • » Dose measure cap cleaning online
  • » Production Counter
  • » Integration with inspection/Rejection device.
  • » To apply Dose measure cap on Plastic/Glass capped bottles
  • » Cap diameter:- 20 mm to 60mm
  • » Cap Height :- 10 mm to 50mm
  • » Bottle diameter:- 30mm to 100mm
  • » Bottle Height:- 30mm to 150mm
