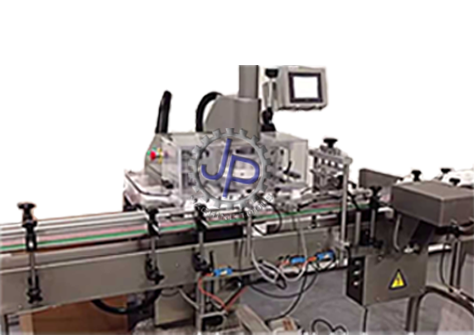

cotton insertion machine
| Model No | Production / hour |
|---|---|
| JPCI-60 | 3600 |
| JPCI-120 | 7200 |
| JPCI-180 | 10800 |
| JPCI-240 | 14400 |
*The output depends on bottle and cotton geometry
*Specification subject to change without prior notice.
Competencies
- » Total CGMP model
- » Frame Made from SS-structure.
- » Sleek, sturdy and compact design
- » All controls from panel
- » Left to right and right to left options available
Features
- » The cotton Roll is stacked into the dispensing roller.
- » It is passed in between two pressure rollers
- » An indexing turret with slots is used to store the cotton.
- » One Set of roller is stopped & other roller rolls hence acts as a cutter
- » Simultaneously a pneumatic arm places it into the slot ( from bottom)
- » After indexing slot will be over the mouth of the bottle.
- » Another pneumatic arm will push the cotton slug to the bottle.
- » Post indexation another pneumatic arm fixed over conveyor will ensure the proper settling of the cotton over the tablets/capsules.
- » Bottle is stopped using pneumatic plungers. Hence no bottle change parts
