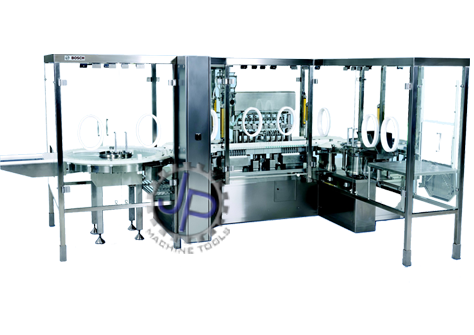

Vial liquid filling machine

Model No Production / hour No. of Syringes
JPVLF-120 7200 4
JPVLF-180 10800 6
JPVLF-240 14400 8

*The output depends on Liquid’s inherent characteristics, fill volume,ambient temperature conditions, and vial geometry.

* Specification subject to change without prior notice.

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » All controls from panel
  • » PLC-HMI touch screen

Features

  • » Vials are fed to the chain conveyor using starwheel
  • » Holder Mounting of the size of the vials are mounted on the chain.
  • » Four/Six vials are indexed at a time
  • » Nozzles are inserted into the vial for liquid filling
  • » Nozzles and vial moves together during liquid filling
  • » Nozzles are connected with syringes
  • » Liquid is slowly delivered to the vial.
  • » Servo driven dose adjustment and motion control (Optional )

Accessories

  • » Flow controller
  • » Liquid tank
  • » Pre/post inspection unit
  • » Pre/post check weigher

Utilities

  • » 415V, 3Ph, 50Hz electric supply
  • » Electric load 3HP
  • » Compressed air:- 2 CFM at 4 to 6 Kg/cm²
  • » Nitrogen purging
  • » Rejection device
  • » Monoblock machine for rubber stoppering
  • » To fill liquid into the vials
  • » Vial size upto 30mm
  • » Upto 50ml per single dose
