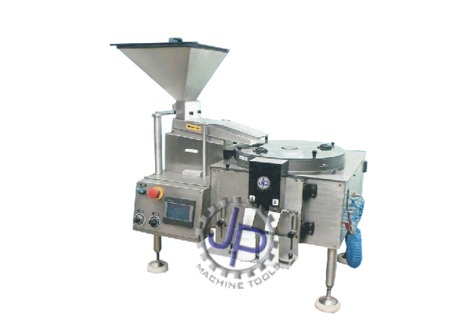

tablet counting machine

Model No Production per hour
JPC1 60000

*The output of the machine depend on capsule/tablet geometry.

*Specification subject to change without prior notice.

Inquiry
Machine Detail Accessories & Utillties Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » All controls from panel
  • » PLC - HMI touch screen.

Features

  • » No bottle change parts required
  • » Quick setting to adjust to the tablet/capsule size & shape
  • » Very high accuracy for piece counting
  • » Tablet/capsules are filled in hopper
  • » It is conveyed to rotating orienting disc with help of vibrator.
  • » Vibrator will start & stop on sensing level on rotating disc
  • » Rotating disc will orient tablet/capsule in one line
  • » After that tablet/capsule passes to counting junction and gets filled into bottles
  • » Auto change over flap

Accessories

  • » Production Counter
  • » Pre/post Inspection device

Utilities

  • » 230V, I-phase, 50hz electric supply
  • » Electricload:- 2HP
  • » To count tablets and capsules and fill them in bottles
  • » Tablet/capsule diameter-width :- up to 15mm
  • » Bottle diameter:- 30mm to 150 mm
  • » Bottle height:- 30 mm to 150 mm
