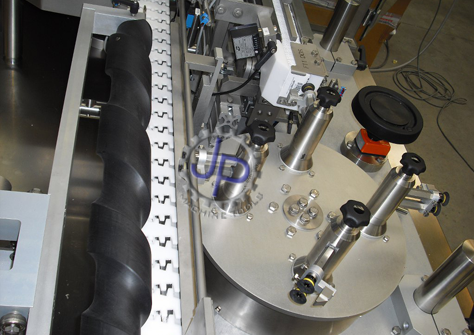

Side outserter machine

Model No Production per hour
JPSO-60 3600
JPSO-120 7200
JPSO-240 10800
JPSO-360 14400

*The output depends on bottle and leaflet geometry.

*Specification subject to change without prior notice.

Competencies

  • » Fully automatic Machine
  • » Total CGMP model
  • » Frame Made from SS-structure
  • » Sleek, sturdy and compact design
  • » All controls from panel
  • » Left to right and right to left options available
  • » PLC HMI-Touch screen

Features

  • » Very quick changeover of the changeparts.
  • » Very high accuracy for leafler placement
  • » Vacuum controlled leaflet pickup from the magazine
  • » Pickup shaft will place it on the bottle.
  • » Pressing wheel presses it for perfect attachment
  • » Completely Fail safe design

Accessories

  • » Bar code reader
  • » Pharma code reader
  • » Camera Inspection/readers

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 2HP
  • » Air:- 2 CFM @ 4 to 6 kg/cm²
  • » Label inspection and rejection device
  • » Industrial PC to display/inspection of barcode
  • » Integration with vision system
  • » Servo driven bottle orienter.
  • » To apply leaflet/outsertes on side of the bottles
  • » Leaflet length/width:-upto 40 mm
  • » Leaflet thickness:- 3-12mm
  • » Bottle diameter:- 30mm to 80 mm
  • » Bottle height:- 50 mm to 150 mm
