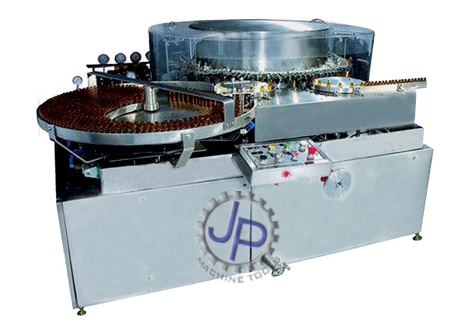

Rotary ampoule washing machine

Model No Production per hour
JPRW-60 3600
JPRW-120 7200
JPRW-180 10800
JPRW-240 14400

*The output depends on ampoule geometry and characteristics of cleaning media.

* Specification subject to change without prior notice.

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » All controls from panel
  • » PLC-HMI touch screen

Features

  • » The infeed turret and feedworm mechanism delivers the ampules to the grippers
  • » Grippers hold the ampoules firmly
  • » Post that grippers are inverted.
  • » Nozzles are inserted inside ampoules for liquid/air washes
  • » Low water consumption
  • » Quick change over of change parts
  • » Washed ampoules can be collected in the tray/ pushed to tunnel
  • » Electrnically controlled spray duration and spray cycle
  • » Water tank and ampoule collector is needed as accessory

Utilities

  • » 415V, 3ph, 50Hz electric supply
  • » Electric load 5 HP
  • » Compressed air:- 5 CFM at 4 to6 kg/cm²
  • » Water or cleaning liquid as per tank size
  • » To wash vials/Ampule with water or any other liquid
  • » Ampoule diameter upto 20mm
