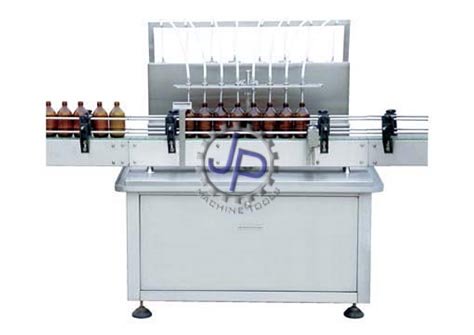

Inline Liquid filling machine

Model No Model No Production per hour No of Filling heads
JPILF-A-80 JPILF-B-80 4800 4
JPILF-A-120 JPILF-B-120 7200 6
JPILF-A-150 JPILF-B-150 9600 8

* The output of the machine depends on liquid’s inherent characteristics, ambient atmospheric conditions, fill volume and container geometry.

* Specification subject to change without prior notice.

Application: To fill liquid into glass and plastic bottles

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » Fully Automatic machine
  • » All controls from panel
  • » Left to right and right to left options available
  • » PLC-HMI touch screen

Features

  • » No bottle no fill arrangement
  • » No Bottle change parts required
  • » Bottle is centered under the Nozzle
  • » Bottom-up filling for foaming liquid
  • » In bottom up filling, Nozzle is inserter in the mouth of bottle and are slowly lifted to original position.
  • » Top filling for other liquid
  • » Liquid is dispensed to bottle from nozzle
  • » Very high dosing accuracy due to piston dosing method
  • » Parts can be easily declamped / clamped for quick cleaning and changeover
  • » Completely fail safe design

Accessories

  • » Flow controller
  • » Liquid tank
  • » Pre/post Check weigher
  • » Pre/post Inspection unit

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 2HP
  • » Air:- 1 CFM @ 4 to 6 kg/cm2
  • » Synchronisation with nitrogen purging.
  • » Electronic level controller and pneumatic product in feed control
  • » Model with peristaltic pump/servo motor
  • » Monoblock machine for Screw capping/ROPP capping
  • » To fill liquid in Plastic/Glass bottles and simultaneously seal them with Screw/ROPP cap
  • » Machine series-A suitable to fill 5ml to 250ml
  • » Machine series-B suitable to fill 250ml to 1000ml
  • » Bottle Diameter:- 30mm to 80mm
  • » Bottle height:- 50mm to 150 mm
