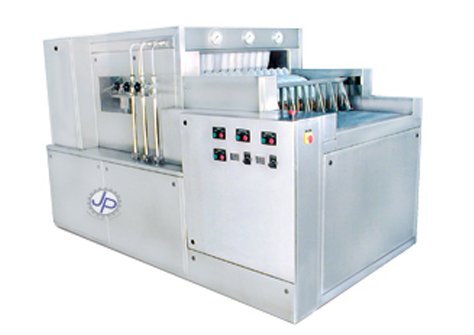

Bottle Washing Machine

Model No Production per hour
JPBW-60 3600
JPBW-120 7200
JPBW-240 14400

* The output of the machine depend on Bottle geometry.

* Specification subject to change without prior notice

Application: To clean bottle ( Plastic and Glass) with water or any liquid

Inquiry
Machine Detail Accessories & Utillties Application

Competencies

  • » Total CGMP model
  • » Sleek, sturdy and compact design
  • » PLC-HMI-touch screen
  • » Frame Made from SS-structure.
  • » All controls from panel .

Features

  • » Complete Fail safe Design
  • » Water recycling arrangement is possible as per requirement
  • » Washing cycle and washing timing can be adjusted as per requirement
  • » Easy changeover of changeparts
  • » Built in two/three pumps and two/three tanks
  • » Inner and outer vial washing ensure total cleaning
  • » Washing chamber having various spray zones and spray duration is electrically controlled
  • » Rotary Mechanism, PLC controlled with touch screen HMI
  • » Very less maintenance required
  • » Spray duration is electrically controlled.
  • » Machine provided with SS-316 pumps and SS-316 tanks
  • » Turn table available as accessory

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 5HP
  • » Air:- 2 CFM @ 4 to 6 kg/cm2
  • » Water or liquid as per tank size
  • » To clean bottle ( Plastic and Glass) with water or any liquid
  • » Bottle diameter:-30 to 100mm
  • » Bottle Size:- 50-150mm
