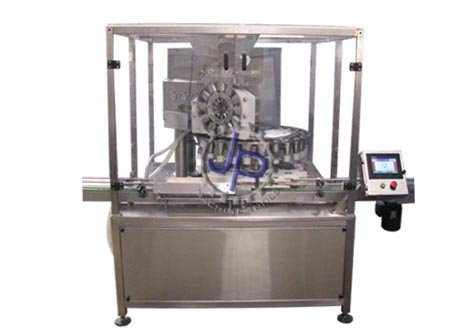

powder filling machine

Model No Production Per Hour Powder-Wheel No of Turret Stations
JPCMR-120 Upto 7500 6-Port 24
JPCMR-240 Upto 15000 12-Port 24
JPCMR-360 Upto 21000 12-Port 36

* The output of the machine depends on powder’s inherent characteristics, ambient atmospheric conditions, fill volume and container geometry.

* Specification subject to change without prior notice.

Application: To fill Powder/Dry syrup in containers

Inquiry

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure
  • » Sleek sturdy and compact design
  • » All control/indication from HMI
  • » Left to right and right to left options available
  • » PLC HMI-Touch screen

Features

  • » Fully Automatic machine.
  • » Vacuum pressure filling system. Powder moves from hopper to powder wheel under vacuum, this ensures    uniform powder slugs. The slugs are then pushed out by air/nitrogen pressure in the funnel.
  • » Funnel moves with container and during this period powder is dispensed to container
  • » Special feature of vibrator, turret in 4 piece, nitrogen purging and bottle lip cleaner is available ( Better GMP)
  • » Very quick changeover of the changeparts.
  • » Very high dosing accuracy.
  • » Low maintenance machine
  • » Parts can be easily declamped/clamped for quick cleaning and changeover
  • » Fully fail-safe design

Accessories

  • » Dust Collector
  • » Vacuum pump
  • » Powder Loader
  • » Pre-post check-weightier
  • » Pre and post Inspection device

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 3HP
  • » Compressed air:- 5 CFM @ 4 to 6 kg/cm2
  • » Vacuum:- 26”Hg,1000-3000LPM
  • » Vibratory mechanism for sticky or hygrospcopic powder
  • » Synchronisation with nitrogen Purging
  • » Mechanized slug breaker
  • » Rejection device
  • » Integration for checkweighers/inspection units
  • » Monoblock machine for Screw capping/ ROPP capping
  • » To fill Powder/Dry syrup in containers
  • » Container Diameter:- 30-90mm
  • » Container Height:- 50-150 mm
  • » Dose:- upto 150 gm
